Setup Guide for
現場架設操作說明

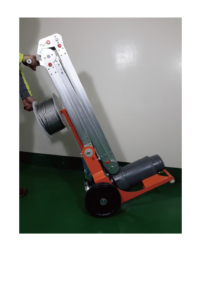

The electric setup-type cable puller is a powerful tool that supports almost every cable box configuration.
Simply adjust the arm to the required angle,
and use side-pull heads or fixed pulleys as needed,
allowing one machine to handle multiple on-site scenarios.
Let’s go through the basic operating steps below.
Let's learn how to do it below.

Understand basic operation

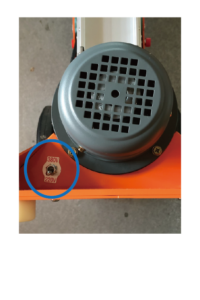

Basic Operating Instructions

First understand ”

電動架設式拉線機提供水電工程業者，用於各種管路配電拉線、電纜工程之用，本機以突破傳統固定法，採可調整導線手法架設，做反推力支撐施工法，無須固定於地面。

Learn How to Set Up

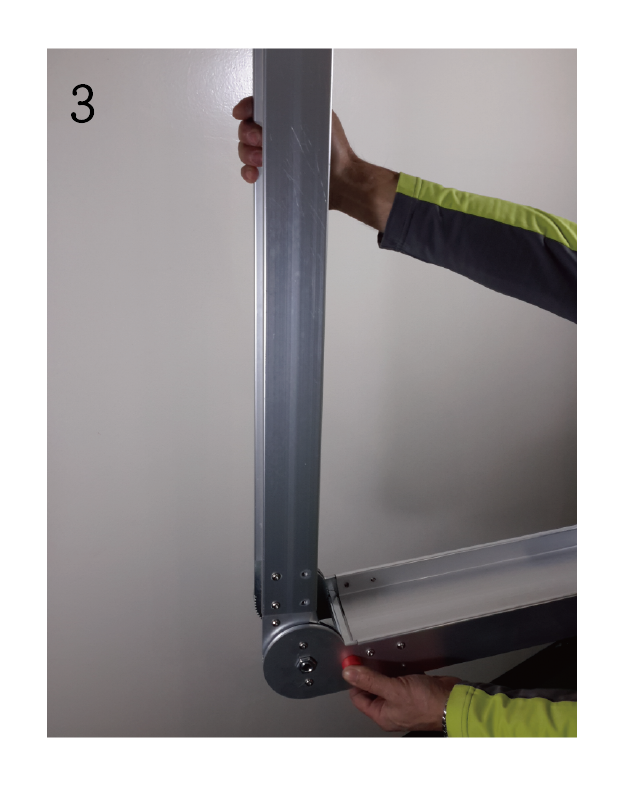

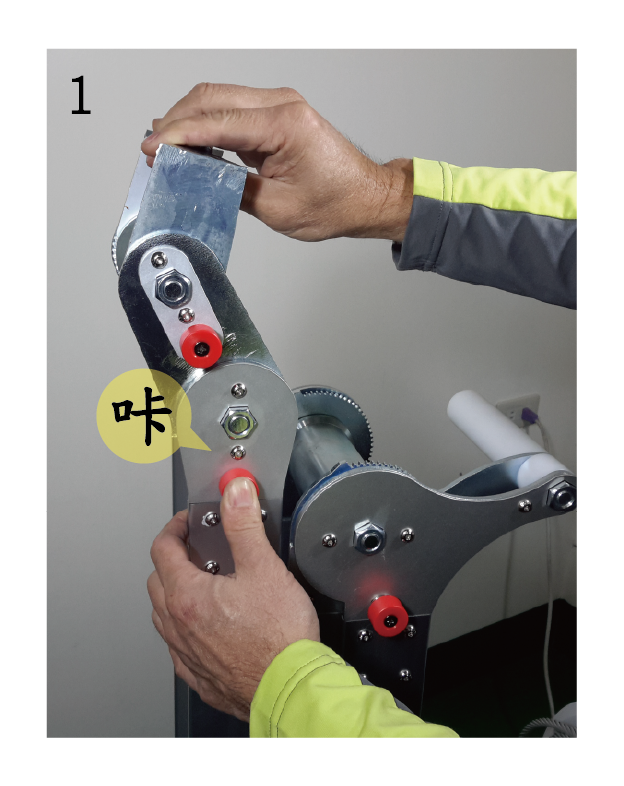

Push down on the positioning tip with your left hand to disengage the positioning teeth, and lift up the spool with your right hand.

Disengage the locating tooth by pressing down on the locating tip A with the right thumb.

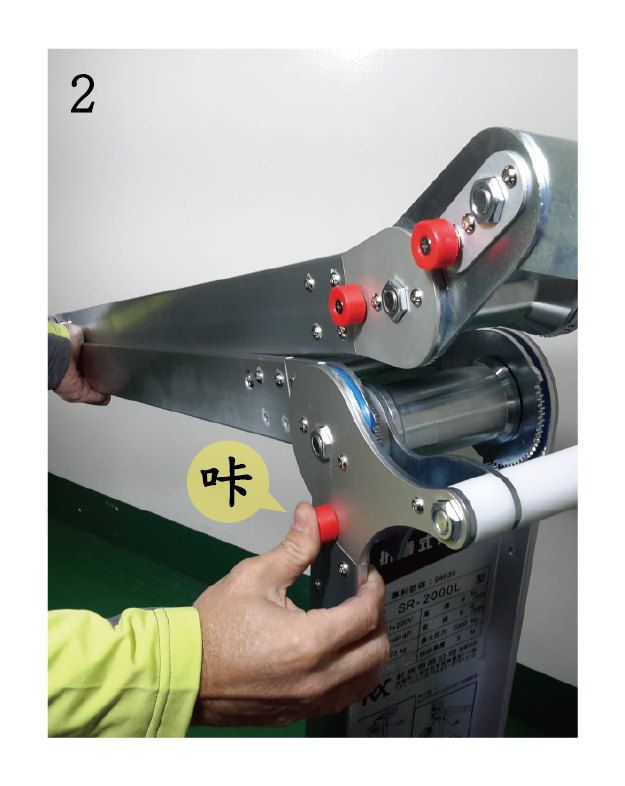

Open the second mechanical arm with your left hand to the proper position.

Press down on tip B with the thumb of your left hand.

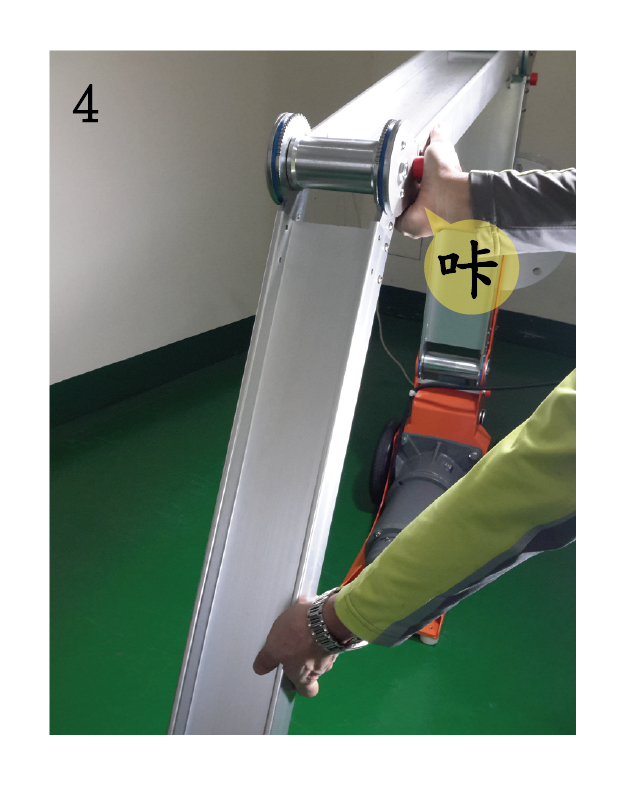

Disengage the positioning teeth and detach the third robot arm with the right hand.

Place the fingers of the right palm underneath and press down on Tip B.
Disengage the positioning teeth and adjust the third arm with the left hand.

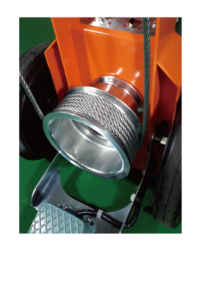

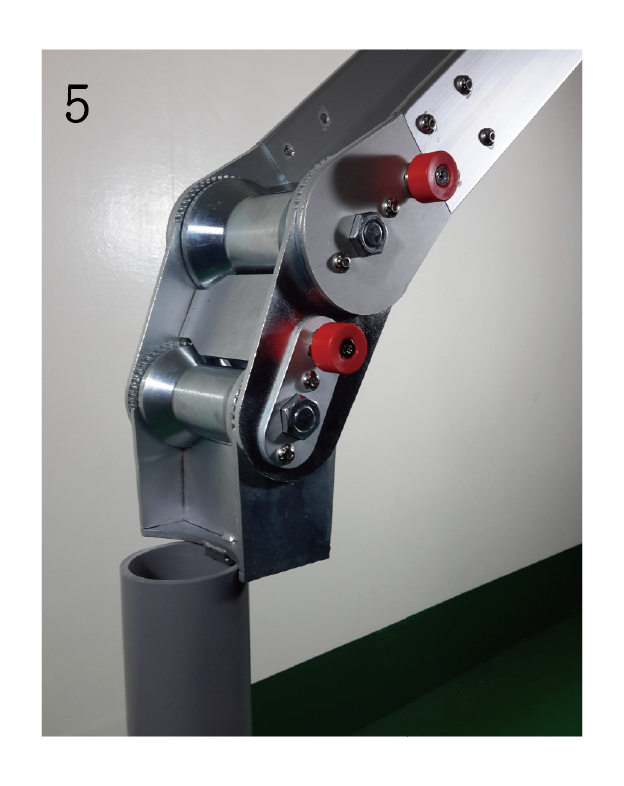

Finally, adjust the angle of the spool, and hold the wire guide vertically against the edge of the orifice. The front end of the wire leader should not be in the air with the nozzle!

This machine is designed for one-person operation.
Cannot be operated by two people at the same time to prevent finger pinching.
When adjusting the arm joints, make sure that there is a "click" on the positioning tip.
The sound of the buckle is what secures the arm.

拉線機現場架設方式

Before using the cable puller, you mustRead the basic operating instructions，
The machine must be operated by trained professionals, and should not be used by uneducated persons.
The following is an example of how to set up the cable in various field conditions.
