輕量小巧，拉力強大

Setup Guide for

The positioning-pin design allows the 3-meter arm to be set up quickly, with a multi-angle foldable arm that adapts to any job site. From large floor-mounted cable boxes to overhead cable pulls, one machine handles it all. Equipped with an automatic braking system to prevent cable drop, it makes high-level cable pulling safer and faster.

Model and Pulling Capacity

SR-1500L: Continuous pulling force 1500 kg
SR-2000L: Continuous pulling force 2000 kg

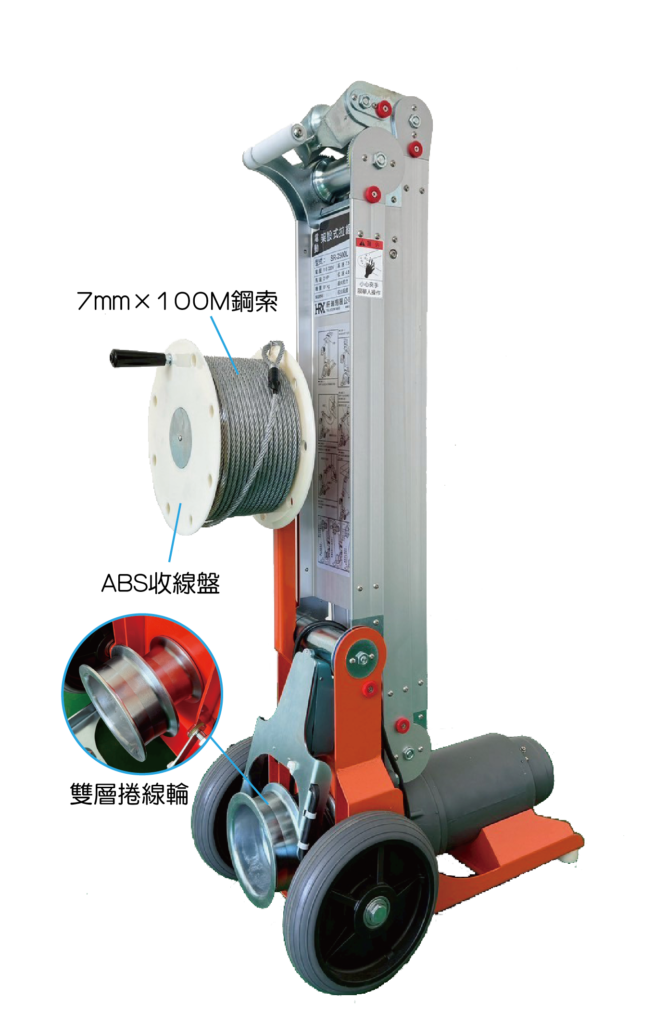

SR-2500L: Continuous pulling force 2500 kg

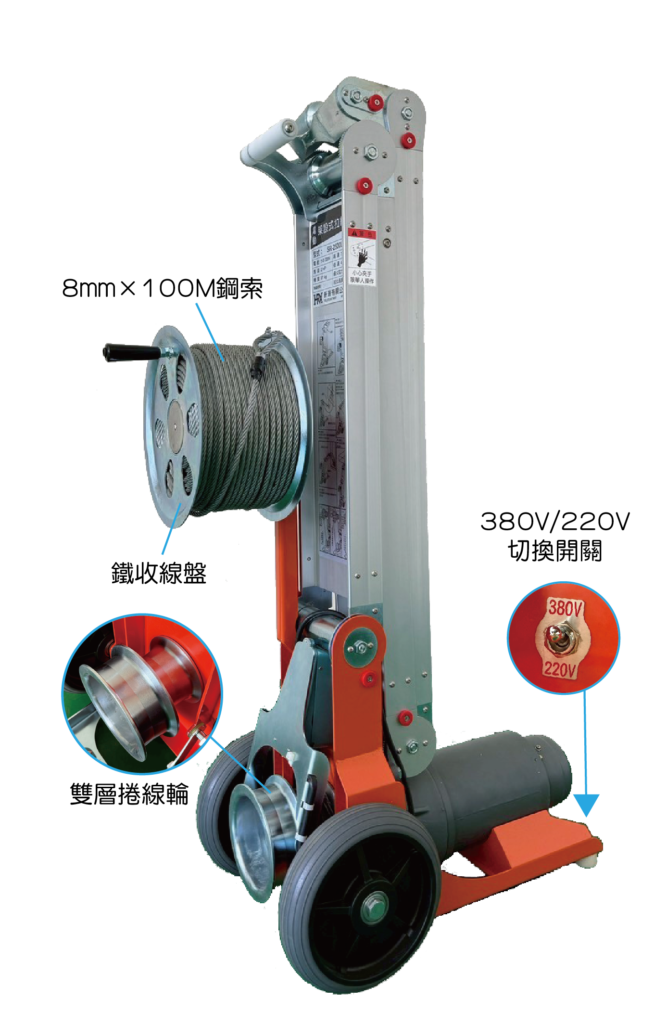

SR-3000L: Continuous pulling force 3000 kg

View Catalog

3-Meters Pulling Length

Designed with a multi-angle extendable arm, the HRX Portable Cable Puller ，adapts effortlessly to different cable box configurations. For large ground-mounted cable boxes that require a pulling distance of more than 2 meters, our 3-meter extension arm provides the reach and flexibility needed for smooth, long-distance cable installation. While most portable cable pullers on the market offer less than 2 meters of pulling length, HENREX delivers superior range, easier setup, and greater efficiency — making it ideal for large-scale projects

深入了解拉線機

Specifications

Model			SR-2000L
Specifications	Maximum tension		2000 kg
	Pulling speed	hight speed	9 M/MIN
		low speed	6 M/MIN
	Pull-out length		300 CM
	Machine weight		78 kg
	Power supply		1Ø220V
	Horsepower		2HP
	Standard variable speed		1:80
Bonus	ABS Wire Reel for Puller		1 pcs
	Steel cable		7mm×100M
Optional accessory	Fixed Pulley		1 pcs
